Low Frequency RFID Identification Ear Tag
Identification ear tag is a plastic or metal object used for identification of domestic livestock and other animals. If the identification ear tag uses Radio Frequency Identification Device (RFID) technology it is referred to as an electronic ear tag. Electronic ear tags conform to international standards ISO11784 and ISO11785 working at 134.2 KHz, as well as ISO/IEC18000-6C operating in the UHF spectrum. There are other non-standard systems such as Destron working at 125 KHz.
| Chip Type | EM4305,TK4100,EM4200,HiTag-S256 |
| Frequency | 125KHz, 134.2KHz |
| Power Supply Mode | Passive |
| Mode | Read / Write |
| Protocol | ISO11784, ISO11785 |
| Memory | 512 Bit |
| Operating Distance | Up to 60cm (depending on antenna geometry) |
| Female Size | 32*15mm |
| Male Size | 28*23mm |
| Material | TPU |
| Temperature | (-25~70ºC) |
| Net Weight | 6.5 Grams
|
Applications:
1. The material of this product contains no lead and toxic. ROHS standard is adapted to the whole manufacturing process. Plastic cover is made of polyurethane which would not stimulate skin.

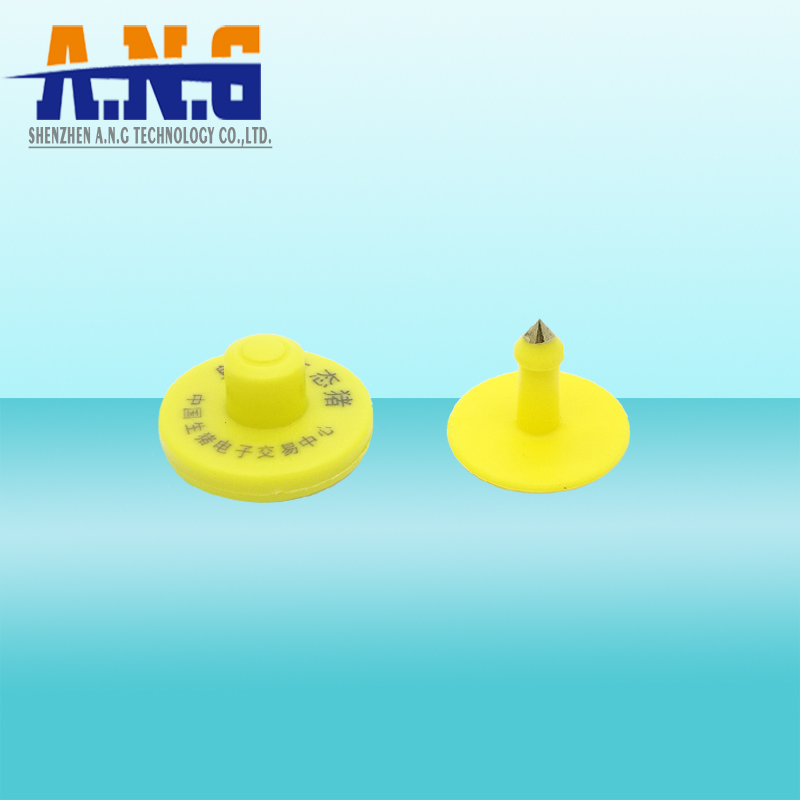

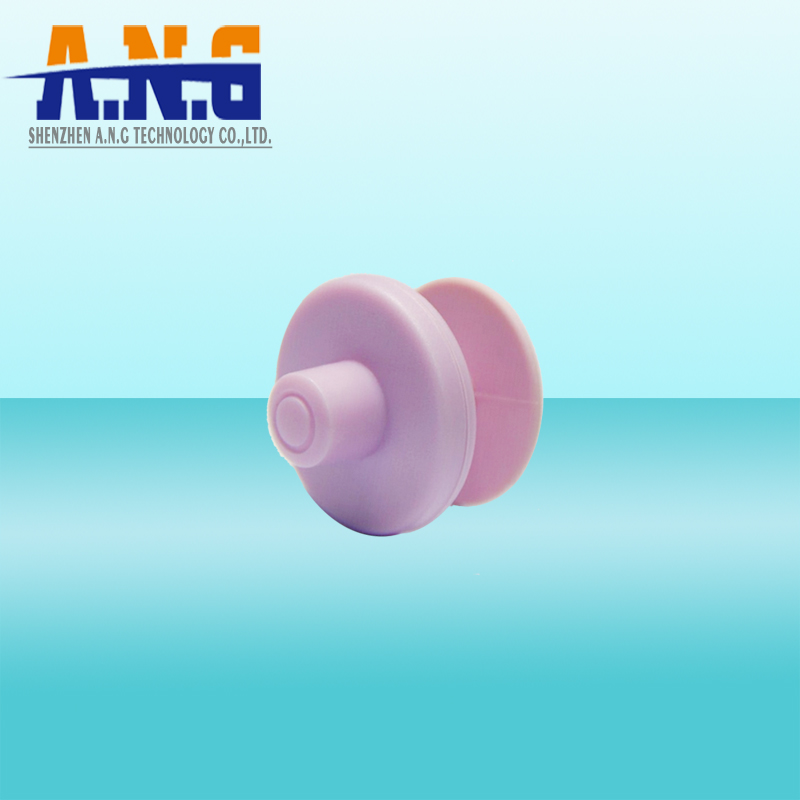

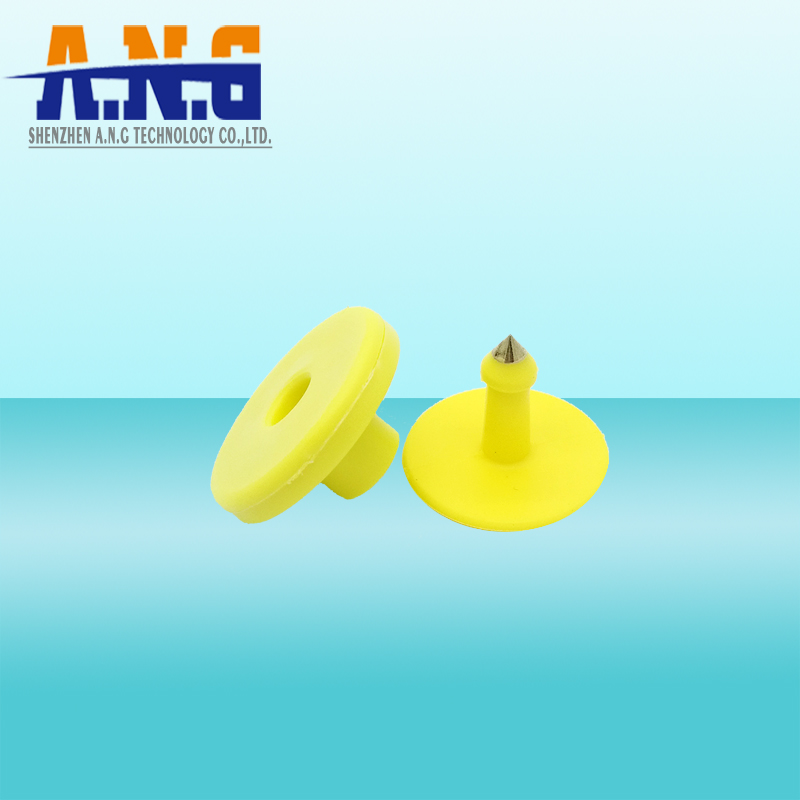

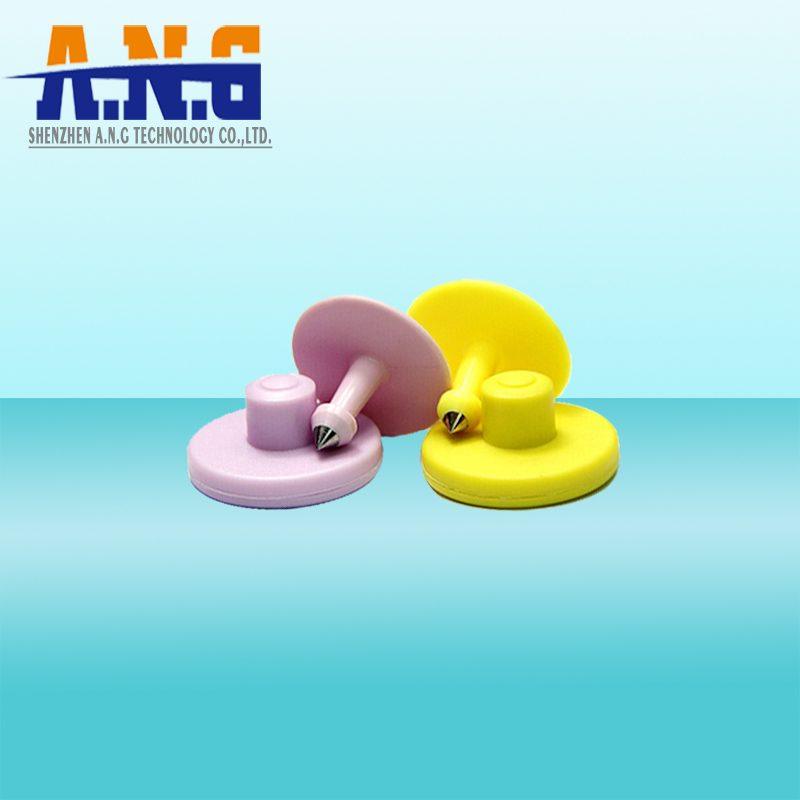

2. The tag has two kinds-male tag or female tag. The two parts of a tag are stuck together by ultrasonic wave. By this way they would never fall off.
3. The encoding format of this product completely meets the standard of ISO11784/5.
4.The unchangeable UID would be encoded in the product before ex-work.
5. It is used as ID of domestic animal, such as cow, sheep, pig, deer, dog and others which have ears.
